Angular Accumulation (Flower Bouquet) Plot for Time Series

Source: R/make_plot_bouquet.R
make_plot_bouquet.Rd

Draws each time series as a turtle-graphics path from a shared origin, encoding the binary direction of consecutive changes as fixed-angle turns: an increase turns the heading left by \(\theta\) and a decrease turns it right by \(\theta\). No change continues straight ahead. Because all series share the same origin and angle, the visual similarity of paths directly reflects the similarity of fluctuation patterns across series.

Usage

make_plot_bouquet(
  data,
  time_col = 1,
  series_col = 2,
  value_col = 3,
  stem_colors = "#3a7d2c",
  flower_colors = "#f472b6",
  facet_by = NULL,
  ceiling_pct = 0.8,
  launch_deg = 90,
  marker_every = NULL,
  show_labels = FALSE,
  label_color = NULL,
  show_rings = FALSE,
  dark_mode = FALSE,
  title = NULL,
  subtitle = NULL,
  hide_legend_after = 10L,
  lon_col = NULL,
  lat_col = NULL,
  map_width = 0.35,
  coord_crs = NULL,
  cluster_hull = NULL,
  hull_coverage = 1,
  blend = TRUE,
  highlight = NULL,
  from = NULL,
  to = NULL,
  normalise = FALSE,
  show_caption = TRUE,
  verbose = FALSE
)

Arguments

data

A long-format data frame or tibble with at minimum a time column, a series identifier column, and a numeric value column. Additional factor or character columns may be referenced by stem_colors, flower_colors, facet_by, and cluster_hull.

time_col

<tidy-select> The time index column. Defaults to the first column.

series_col

<tidy-select> The column identifying each individual time series. Defaults to the second column.

value_col

<tidy-select> The numeric value column. Defaults to the third column.

stem_colors

Controls the colour of the time series lines. Four options are accepted:

  • A single hex string – all lines share that colour. Default: "#3a7d2c" (plant green).

  • A character vector of hex strings, one per series – recycled with a warning if too short.

  • "greens" – distinct shades from a curated palette of natural greens.

  • A bare column name in data – each series is coloured by that column's value using perceptually uniform colours.

flower_colors

Controls the colour of the end-of-series flower symbols. Same four options as stem_colors. The keyword is "blossom". Default: "#f472b6" (warm pink).

facet_by

<tidy-select> Optional bare column name. When supplied the plot is split via ggplot2::facet_wrap(). NULL (default) = single panel.

ceiling_pct

A single number in (0, 1]. Fraction of the theoretical maximum angle to use as \(\theta\). Default 0.80.

launch_deg

Initial heading in degrees (counter-clockwise from positive x-axis). 90 = straight up. Defaults to 90.

marker_every

Controls step-markers. Either a positive integer (a dot every n-th step) or one of the time-frequency keywords "year", "quarter", "month", "week", or "day". For keywords, the equivalent integer step count is estimated from the median interval of time_col. Keywords require time_col to be a Date or POSIXct vector; non-date columns fall back to marker_every = 1 with a warning. NULL (default) = no markers.

show_labels

Logical. When TRUE, the series name is printed next to each flower symbol, offset in the direction of the final heading. Useful when the legend is suppressed (e.g. when n_series >= hide_legend_after) or for single-panel identification. Default FALSE.

label_color

Single colour string (e.g. "#333333") applied to all series labels when show_labels = TRUE. NULL (default) colours each label to match its flower.

show_rings

Logical. Draw faint concentric reference rings. Default FALSE.

dark_mode

Logical. TRUE = dark navy background. Default FALSE.

title

Plot title string. NULL (default) = no title.

subtitle

Subtitle string. NULL (default) = auto-generated summary of theta, binding series, time range, and interval.

hide_legend_after

Positive integer. Legend is suppressed when n_series >= hide_legend_after. Default 10.

lon_col

<tidy-select> Optional bare column name for longitude. Must be paired with lat_col. When both are provided a location map is attached to the right via patchwork.

lat_col

<tidy-select> Optional bare column name for latitude. See lon_col.

map_width

Relative width of the map panel as a fraction of the combined figure width. Only used when coordinates are supplied. Default 0.35.

coord_crs

Integer EPSG code or NULL. CRS of lon_col/lat_col. NULL = auto-detect from coordinate magnitude. Decimal-degree WGS84 coordinates require no reprojection.

cluster_hull

<tidy-select> Optional bare column name containing cluster labels (e.g. the cluster column produced by cluster_bouquet()). When supplied and a location map is shown (via lon_col/lat_col), a smooth concave hull is drawn around each cluster's map points using ggforce::geom_mark_hull() from the ggforce package. Hull fill colour matches the cluster's flower_colors. NULL (default) = no hulls.

hull_coverage

A single number in (0, 1]. Fraction of each cluster's points (those closest to the cluster centroid) included when computing the hull. Values below 1 exclude outlier points so the hull focuses on the cluster's core area, which is useful when many clusters overlap. Default 1 = all points.

blend

Logical. When TRUE (default) and the ggblend package is installed, cluster hull fills are composited with the "lighten" blend mode and map points with "multiply", giving perceptually richer colour mixing where hulls and points overlap. Falls back silently to normal alpha blending when ggblend is not available. Only affects the map panel; has no effect when no location map is shown.

highlight

A character vector of series names to emphasise. All other series are drawn in a pale grey at low opacity. NULL (default) = all series equally prominent.

from

Optional scalar of the same class as time_col. Observations before this value are dropped before computing paths. NULL = no filter.

to

Optional scalar of the same class as time_col. Observations after this value are dropped. NULL = no filter.

normalise

Logical. Controls how the turning angle \(\theta\) is derived.

FALSE (default)

All series share a single global \(\theta\) derived from the most volatile series (the one with the greatest cumulative binary sweep). Turn direction is binarised to \(\pm 1\) / 0, so only the direction of change is encoded, not its magnitude. Best for comparing directional dynamics on a common scale.

TRUE

Each series gets its own per-series \(\theta\) so every path uses the full angular range independently of volatility. Useful for shape comparison when series have very different variances.

show_caption

Logical. When TRUE (default), a caption line is added below the plot describing the origin marker, the flower symbol, and any active marker_every or highlight settings. Set to FALSE to suppress the caption entirely.

verbose

Logical. Print angle diagnostics to the console. Default FALSE.

Value

A bouquet_plot object. When lon_col and lat_col are NULL, the underlying object is a ggplot2::ggplot. When coordinates are supplied, it is a patchwork object (bouquet left, map right). Both are wrapped in the bouquet_plot S3 class which provides an informative print() header and a format() method. All operations that work on ggplot/patchwork (e.g. ggsave(), +) continue to work.

Details

Input format

data must be in long format: one row per time step per series. Series should share the same time index values and have equal length.

Algorithm

For each series, the signed first difference is binarised to \(+1\) (increase), \(-1\) (decrease), or \(0\) (no change). The heading at step \(i\) accumulates via base::cumsum(); coordinates follow as \(x_i = \sum \cos(h_k)\), \(y_i = \sum \sin(h_k)\).

Angle derivation

$$\theta = \frac{360\degree}{\max_s(\max C_s - \min C_s)} \times \texttt{ceiling\_pct}$$

See also

cluster_bouquet() to group series by directional similarity before plotting. save_bouquet() for convenient export. make_plot_bouquet_interactive() for a plotly hover tooltip version.

Examples

# \donttest{
set.seed(42)
n      <- 52
weeks  <- seq(as.Date("2023-01-01"), by = "week", length.out = n)
season <- sin(seq(0, 2 * pi, length.out = n))

gw_long <- tibble::tibble(
  week    = rep(weeks, 3),
  station = rep(c("Station A", "Station B", "Station C"), each = n),
  region  = rep(c("North", "North", "South"), each = n),
  level_m = c(
    8.5 + 0.8 * season + cumsum(rnorm(n,  0.00, 0.18)),
    7.2 + 0.5 * season + cumsum(rnorm(n,  0.02, 0.22)),
    9.1 + 1.1 * season + cumsum(rnorm(n, -0.01, 0.15))
  )
)

# Minimal call

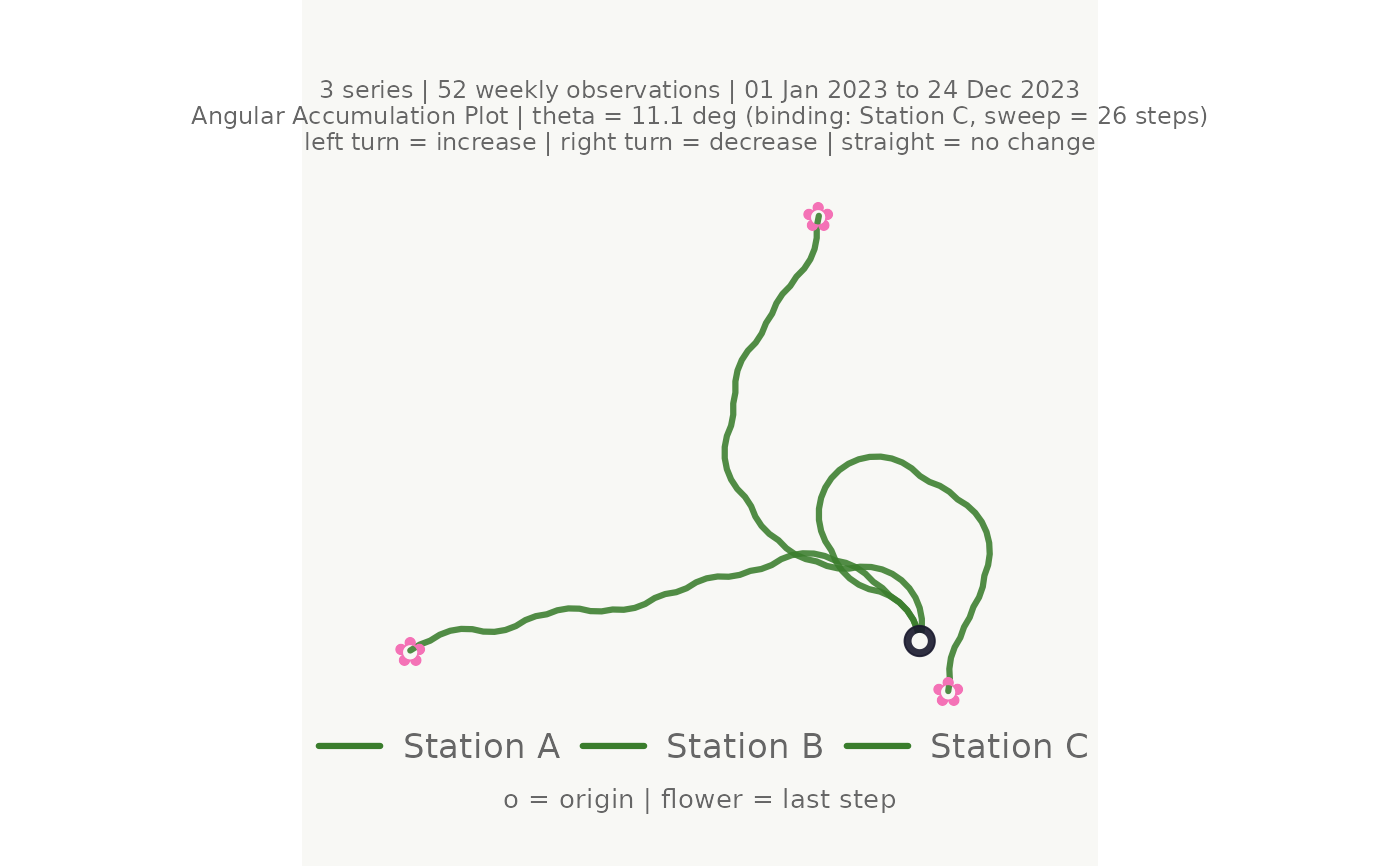

make_plot_bouquet(gw_long,
  time_col = week, series_col = station, value_col = level_m)
#> <bouquet_plot>  3 series | theta = 11.1 deg | binding: Station C

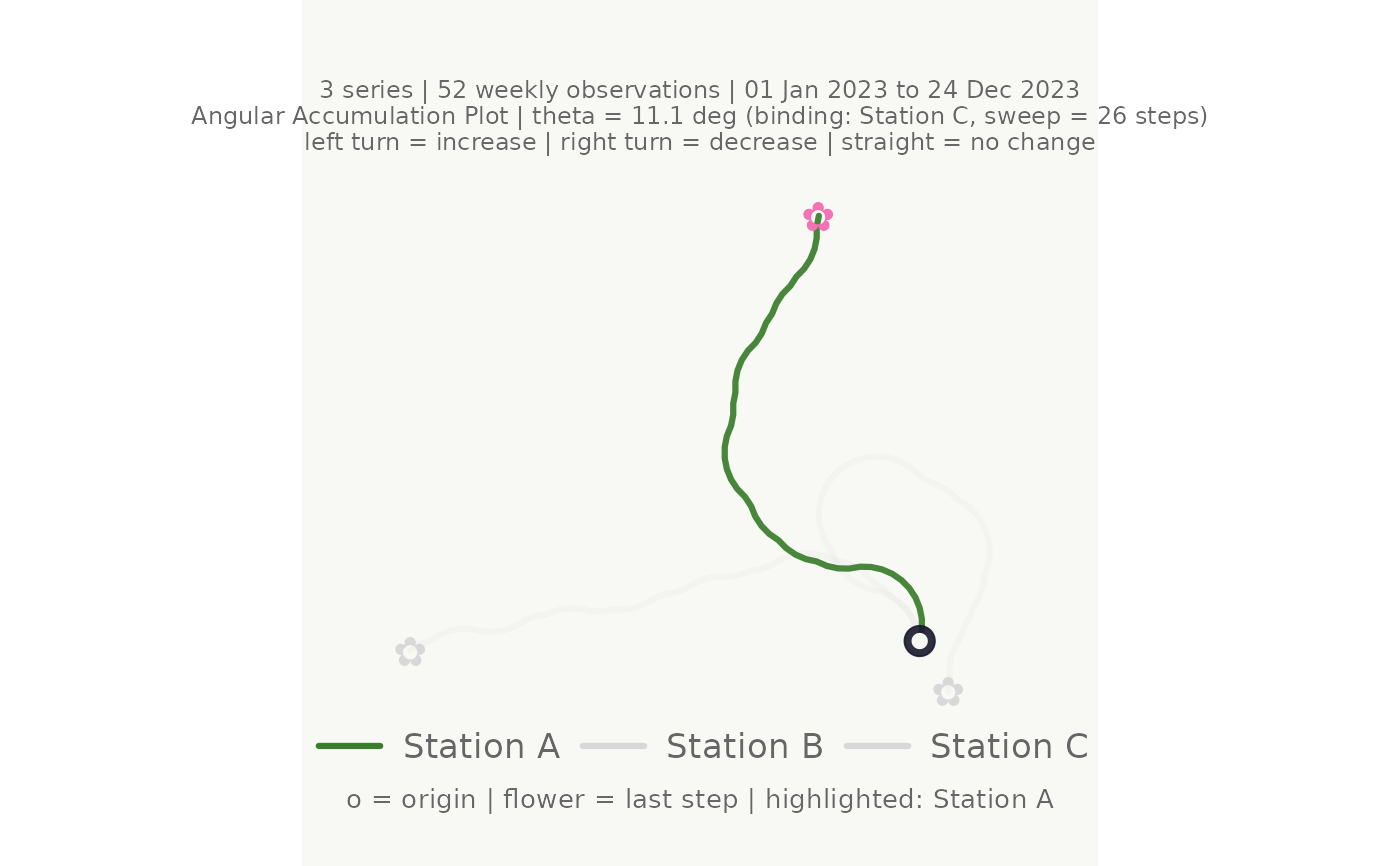

# Highlight one station; others are dimmed
make_plot_bouquet(gw_long,
  time_col   = week,
  series_col = station,
  value_col  = level_m,
  highlight  = "Station A")
#> <bouquet_plot>  3 series | theta = 11.1 deg | binding: Station C

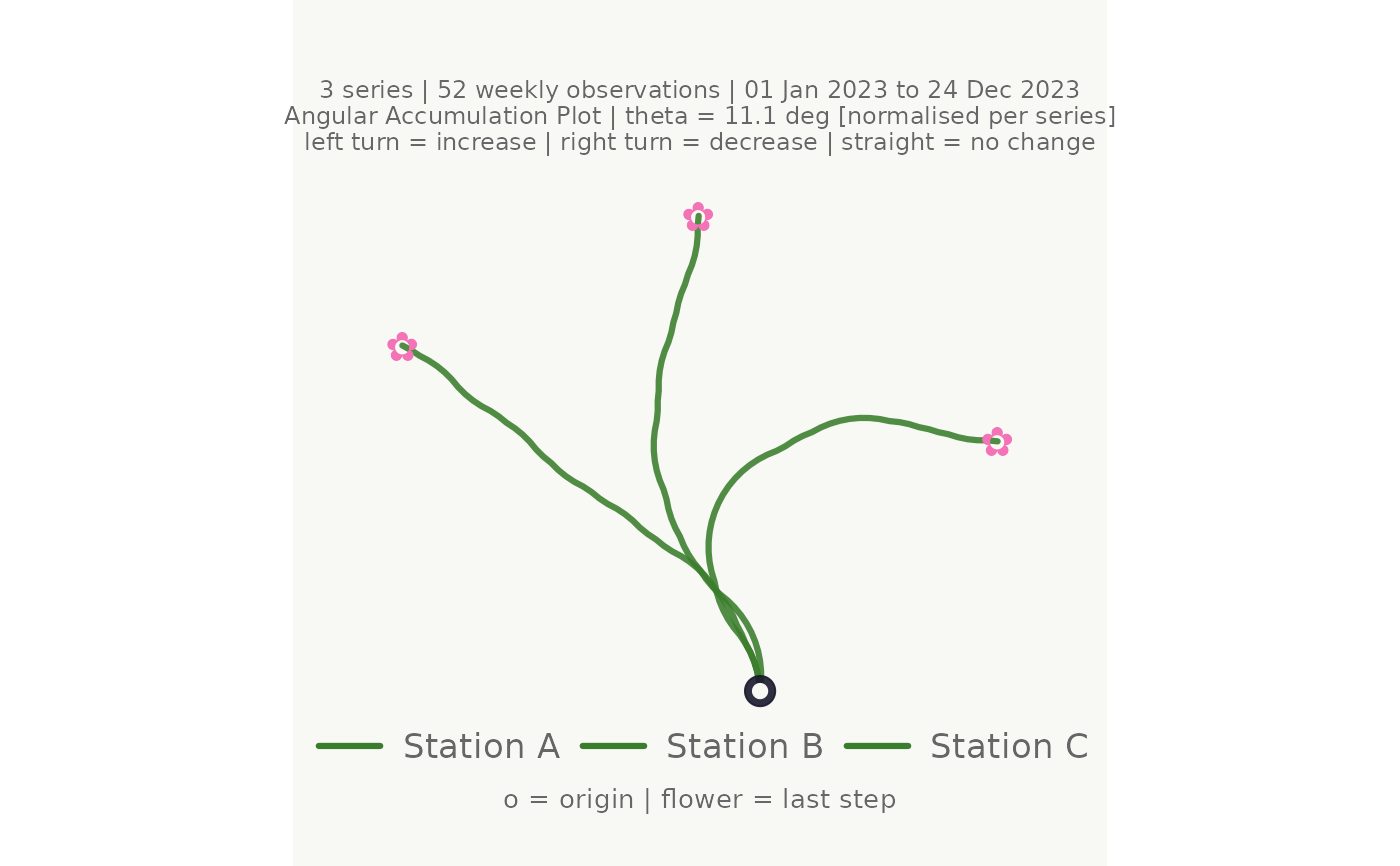

# Normalised mode: each series uses the full angular range
make_plot_bouquet(gw_long,
  time_col   = week,
  series_col = station,
  value_col  = level_m,
  normalise  = TRUE)
#> <bouquet_plot>  3 series | theta = 11.1 deg | binding: Station C [normalised]

# }
